Wrapper for graphics::legend()

Simply assign default arguments to base R legend(). This function is exported but is not meant to be called directly, use brand_on() instead.

Usage

legend_brand(
  legend,
  x = "topright",
  y = NULL,
  bty = "n",
  horiz = TRUE,
  xpd = TRUE,
  inset = c(-0.05, -0.4),
  par = par.brand(),
  ...
)

Arguments

legend

a character or expression vector of length \(\ge 1\) to appear in the legend. Other objects will be coerced by as.graphicsAnnot.

x, y

the x and y co-ordinates to be used to position the legend. They can be specified by keyword or in any way which is accepted by xy.coords: See ‘Details’.

bty

the type of box to be drawn around the legend. The allowed values are "o" (the default) and "n".

horiz

logical; if TRUE, set the legend horizontally rather than vertically (specifying horiz overrides the ncol specification).

xpd

if supplied, a value of the graphical parameter xpd to be used while the legend is being drawn.

inset

inset distance(s) from the margins as a fraction of the plot region when legend is placed by keyword.

...

Arguments passed on to graphics::legend

x,y: the x and y co-ordinates to be used to position the legend. They can be specified by keyword or in any way which is accepted by xy.coords: See ‘Details’.
fill: if specified, this argument will cause boxes filled with the specified colors (or shaded in the specified colors) to appear beside the legend text.
col: the color of points or lines appearing in the legend.
border: the border color for the boxes (used only if fill is specified).
lty,lwd: the line types and widths for lines appearing in the legend. One of these two must be specified for line drawing.
pch: the plotting symbols appearing in the legend, as numeric vector or a vector of 1-character strings (see points). Unlike points, this can all be specified as a single multi-character string. Must be specified for symbol drawing.
angle: angle of shading lines.
density: the density of shading lines, if numeric and positive. If NULL or negative or NA color filling is assumed.
bg: the background color for the legend box. (Note that this is only used if bty != "n".)
box.lty,box.lwd,box.col: the line type, width and color for the legend box (if bty = "o").
pt.bg: the background color for the points, corresponding to its argument bg.
cex: character expansion factor relative to current par("cex"). Used for text, and provides the default for pt.cex.
pt.cex: expansion factor(s) for the points.
pt.lwd: line width for the points, defaults to the one for lines, or if that is not set, to par("lwd").
xjust: how the legend is to be justified relative to the legend x location. A value of 0 means left justified, 0.5 means centered and 1 means right justified.
yjust: the same as xjust for the legend y location.
x.intersp: character interspacing factor for horizontal (x) spacing between symbol and legend text.
y.intersp: vertical (y) distances (in lines of text shared above/below each legend entry). A vector with one element for each row of the legend can be used.
adj: numeric of length 1 or 2; the string adjustment for legend text. Useful for y-adjustment when labels are plotmath expressions.
text.width: the width of the legend text in x ("user") coordinates. (Should be positive even for a reversed x axis.) Can be a single positive numeric value (same width for each column of the legend), a vector (one element for each column of the legend), NULL (default) for computing a proper maximum value of strwidth(legend)), or NA for computing a proper column wise maximum value of strwidth(legend)).
text.col: the color used for the legend text.
text.font: the font used for the legend text, see text.
merge: logical; if TRUE, merge points and lines but not filled boxes. Defaults to TRUE if there are points and lines.
trace: logical; if TRUE, shows how legend does all its magical computations.
plot: logical. If FALSE, nothing is plotted but the sizes are returned.
ncol: the number of columns in which to set the legend items (default is 1, a vertical legend).
title: a character string or length-one expression giving a title to be placed at the top of the legend. Other objects will be coerced by as.graphicsAnnot.
title.col: color for title, defaults to text.col[1].
title.adj: horizontal adjustment for title: see the help for par("adj").
title.cex: expansion factor(s) for the title, defaults to cex[1].
title.font: the font used for the legend title, defaults to text.font[1], see text.
seg.len: the length of lines drawn to illustrate lty and/or lwd (in units of character widths).

Value

Branded legend for base R plots

Examples

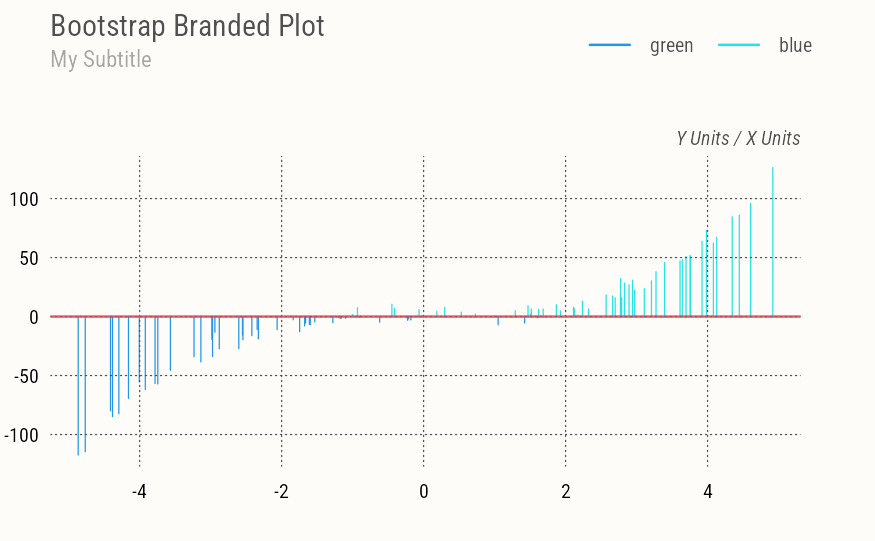

set.seed(1)
x <- runif(100, min = -5, max = 5)
y <- x ^ 3 + rnorm(100, mean = 0, sd = 5)

opar <- par(par.brand())

plot(x, y, type="h", col=(y>0)+4)
axes(nx=NULL,
  main="Bootstrap Branded Plot", sub="My Subtitle",
  xlab="X Units", ylab="Y Units")
abline(h=0, col=pal("red"), lwd=2)
legend_brand(names(pal())[4:5], lty=1, lwd=2, col=4:5)

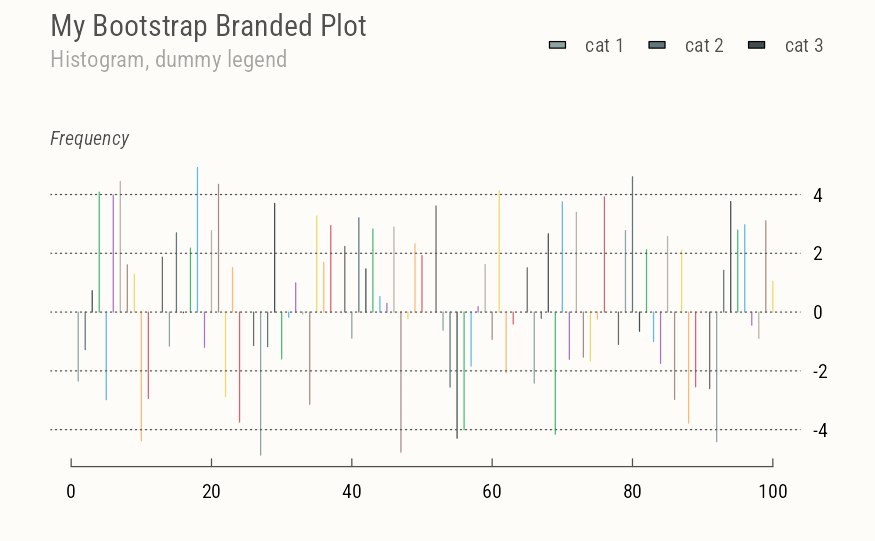

plot(x, type="h", col=pal())
axes(side=c(1,4),
  main="My Bootstrap Branded Plot",
  sub="Histogram, dummy legend", ylab="Frequency")
legend_brand(paste("cat", 1:3), fill=pal(1:3))


par(opar)
